Re: [Dmug] knot theory package

Hi all,

that should work, but let's make it step by step into a one-liner and detect some unpleasant behavior of DrawPD[].

In[6]:= Head[AllKnots[12, NonAlternating]]
Out[6]= List

AllKnots[] is a List[], one can Select[] directly on it as usual

Select[AllKnots[12,
  NonAlternating], (PositiveCrossings[#] == NegativeCrossings[#]) &]

In[7]:= Select[AllKnots[12, NonAlternating], (PositiveCrossings[#] ==
     NegativeCrossings[#]) &] // Length
Out[7]= 107

and plot

In[5]:= GraphicsGrid[
 ArrayReshape[
  TimeConstrained[DrawPD[#, {Gap -> 0.025}], 20] & /@
   Select[AllKnots[12,
     NonAlternating], (PositiveCrossings[#] ==
       NegativeCrossings[#]) &], {Ceiling[107/4], 4}]]

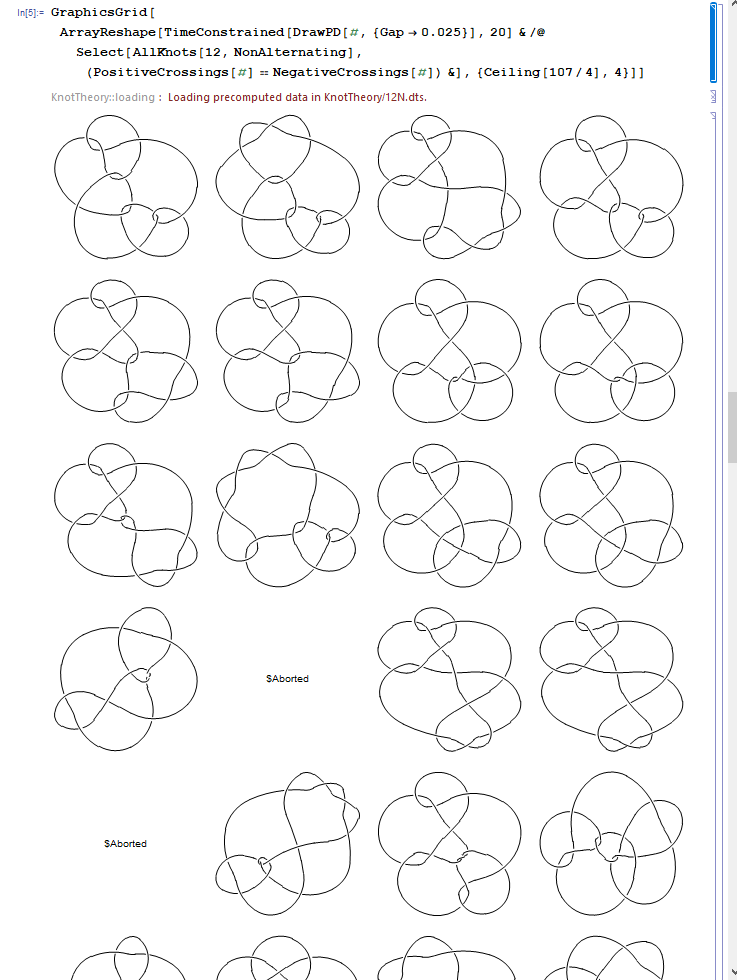

to reach at the result, a part of it is in the picture in the appendix. As you see it has some $Aborted entries because the TimeConstrained[] was not matched by DrawPD[] which is in a way outrageous (first I run it without TimeConstrained[] and this 107 knot picture consumed more than 3.5 hours CPU time ... arrggghhhh).

One of the misbehaving knots under DrawPD[] is

In[8]:= (* das hat einen Fehler *)
DrawPD[Knot[12, NonAlternating, 873], {Gap -> 0.025}]
Out[8]= $Aborted

which has been aborted after minutes of running time by hand.

So, not to research knots, but the work of programmers, how much of $Aborted one has to face here?

In[11]:= Length[
 Select[TimeConstrained[DrawPD[#, {Gap -> 0.025}], 20] & /@
   Select[AllKnots[12,
     NonAlternating], (PositiveCrossings[#] ==
       NegativeCrossings[#]) &], # === $Aborted &]]

Out[11]= 9


9 out of 107 is a 8.41% performance fail (at least). You could try to get in touch with the package developers or find out how long it takes to DrawPD[Knot[12, NonAlternating, 873], {Gap -> 0.025}].

In[14]:= DrawPD[Knot[12, NonAlternating, 873]]

During evaluation of In[14]:= KnotTheory::credits: DrawPD was written by Emily Redelmeier at the University of Toronto in the summers of 2003 and 2004.

Out[14]= $Aborted

Best regards
Udo.


On Fri, 27 Jul 2018 14:16:20 +0200, Peter via demug <demug@XXXXXXX.ch> wrote:

Hallo Stephan,


 versuchen Sie doch mal:

For[i = 1, i <= lo, i++,
  Print@Show[DrawPD[out[[i]], {Gap -> 0.025}]]]


bzw.

For[i = 1, i <= lo, i++,
  Print[Show[DrawPD[out[[i]], {Gap -> 0.025}]]]]

das sollte funktionieren

Grüße,
  Peter

Am 27.07.2018 um 09:04 schrieb Stephan Rosebrock via demug:
...
and then

Show[DrawPD[out[[1]], {Gap -> 0.025}]]

Everything works fine. But

For[i = 1, i <= lo, i++,
 Show[DrawPD[out[[i]], {Gap -> 0.025}]]]

shows no output at all. I don't understand that. Do you have an idea?

Best wishes
Stephan

_______________________________________________
DMUG Deutschsprachiges Mathematica-Forum demug@XXXXXXX.ch
http://www.mathematica.ch/mailman/listinfo/demug
Archiv: http://www.mathematica.ch/archiv.html

Attachment: knotTheoryWithAborts.PNG
Description: PNG image
